    Sand Control 1.0mm Continuous Slot Screen In Deep Well

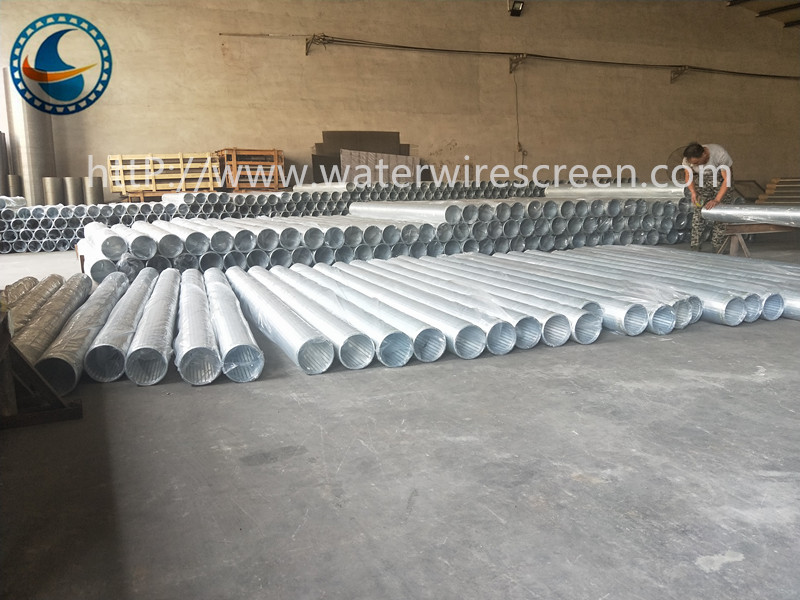

    6" Low Carbon Galvanized Continuous Slot Screen For Sand Control In Deep Well


    Product Description:


    Continuous Slot Screen, also be named Wire Wrap Johnson Screen,Johnson screen,Wound Screen, Wedge wire screen, Wire wrapped screen.


    Continuous Slot Screen is of the continuous slot,designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.Both the inner and outer screens shall be constructed of V-shaped wire continuously wrapped around an array of equally spaced support rods of the same material.Each junction of wire/rod contact shall be resistance welded.

    .

    Specification:


    Name

    Continuous Slot Screen

    MaterialLow carbon galvanized steel
    O.D168 mm
    Size6-5/8 "
    Slot size1.0 mm
    Length2.9m
    End connectionWelded rings
    Wire size2.2*3.5mm Vee-shaped Wire (2.2mm is the width and 3.5mm is the hegith)
    Support rodø3.8mm round wire
    Wire shapeV shape

    Regular Specifications:


    Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

    O.D.: 4-1/2", 6-5/8", 8-5/8", 10-3/4", 12-3/4", 14", 16" inch and as request.

    Slot: 0.1mm - 35mm

    Discrepancy: + / - 0.05mm

    Length: 50mm-6000mm, 2.9m and 5.8m in usual to fit container.

    End Connection: welded rings or thread couplings ( male / female )

    Specification of the wrap wire:1*2mm, 2*3mm, 2.2*3.5mm, 3*4.6mm and so on.

    Specification of the rod:2.8mm, 3.0mm, 3.8mm, 4.0mm, 4.2mm, 4.5mm, 5.0mm and so on.

    Special specification can be made according to your need.


    Advantages:


    Not easy to jam

    the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

    Slot even

    The CNC machine tools strictly control the gap between the wire, so that the gap is even.

    Strong corrosion resistance

    Stainless steel 304 have the high corrosion resistance


    Application:

    Continuous slot screen is best applied in the following situations:


    Geological formations comprised of small, fine particles
    Water wells where gravel packs will be installed
    Thin aquifers, where maximum open area is required
    Large- and small-diameter deep wells
