Duplex Steel 2507 Johnson Type Continuous Slot Wedge Wire Screen Tube

Johnson Type Continuous Slot Wedge Wire Screen Tube Description:

Johnson Continuous Slot Wedge Wire Screen Tube has been known as the world's leading manufacturer and provider of industrial filters since 1904.
Hengyuan provide screening solutions to almost every industry,including:

· Water Well
· Waste Water Treatment
. Water supply systems
· Coal & Mine
· Food Processors & Beverage Screens
· Environmental protection
· Refining & Petrochemical
· Architecture & Construction

1. Johnson Type Continuous Slot Wedge wire screen tube is made up of Vee-shaped wire and round rod in each intersection welded together.

2. Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface.

3. The V-shaped openings, designed to be non-clogging, are narrowest at the outer face and widen inwardly.It has the firm structure, high temperature resistant, corrosion resistance, good mechanical performance, long service life, safe and reliable, etc.

4. It also can be used for a variety of medium.

Johnson Type Continuous Slot Wedge Wire Screen Tube Specification:
Material: Duplex steel 2507
Diameter:60mm.
Slot:0.15mm±0.03mm
Length: 1 meter.
End: Nothing

Johnson Type Continuous Slot Wedge Wire Screen Tube Advantages:

Non-clogging capabilities
Self supporting
High abreaction resistance
Large open area
Better sand filtration
Energy saving
Lowest possible cost
Long using life
Maximum flow capacity

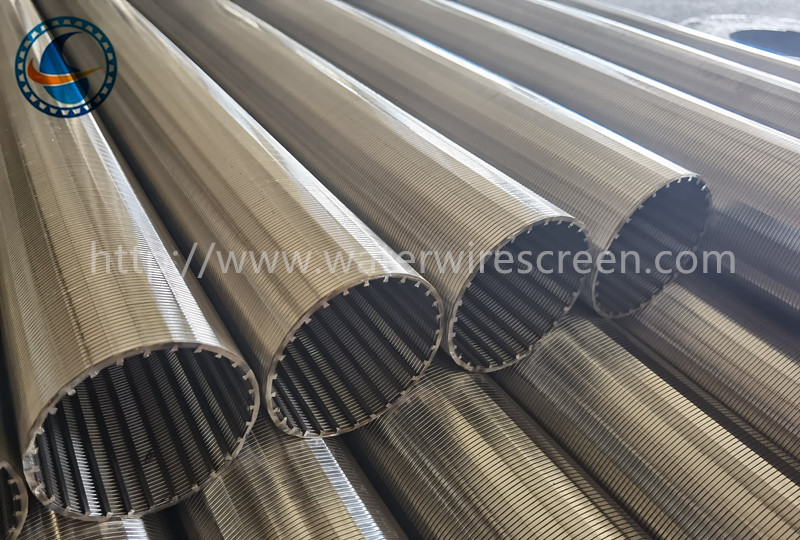

Johnson Type Continuous Slot Wedge Wire Screen Tube Pictures:
