SS 304 Inverted Wire Construction Continuous Slot Wire Wrapped Screen

It is also known as Johnson screen,Continuous-slot VEE-wire screen, wire wrapped screen, wound screen,stainless steel screen tube, wedge wire screen pipe.

Inverted Wire Construction Continuous Slot Wire Wrapped Screen size:

Material:Stainless Steel 304.

Diameter:68mm

Slot size :3.0mm

Length:890mm

Wrap wire:1*2mm

Support rod:2*3mm

End connection: Nothing

Inverted Wire Construction Continuous Slot Wire Wrapped Screen Introduction:

Inverted Wire Construction presents the wire face to the cylinder interior and uses internal support rods.

Inverted Wire Construction Continuous Slot Wire Wrapped Screen made during simultaneous winding of specially profiled working wires on a spiral and welding them to carrying wires placed along the tube.

This technology allows the production of Inverted Wire Construction Continuous Slot Wire Wrapped Screen when very high gap precision and screen resistance are required.

Due to using the newest welding technology we can obtain various distances between carrying wires, very accurate and repeatable gap and therefore produce screens according to customer’s particular requirements.

Inverted Wire Construction Continuous Slot Wire Wrapped Screen Features:

1: Easy to leak,

2: Wear-resistant, corrosion-resistant.

3: The mesh section is triangular.

4: The gap is narrow at the top and wide at the bottom, the screen seam is uniform, the welding quality is stable,

5: The opening rate is high,

6: The service life is long,

7: Tt has high strength, rigidity and bearing capacity.

Inverted Wire Construction Continuous Slot Wire Wrapped Screen normal size:

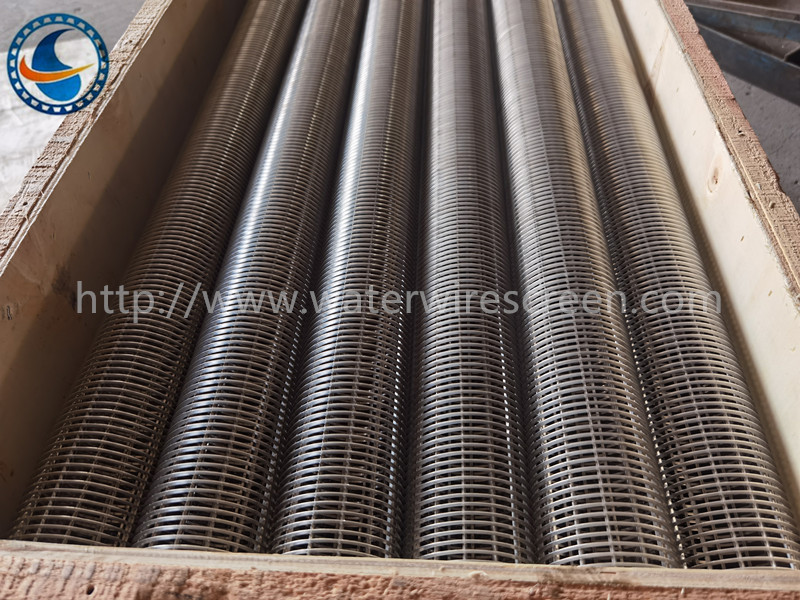

Inverted Wire Construction Continuous Slot Wire Wrapped Screen Pictures:
